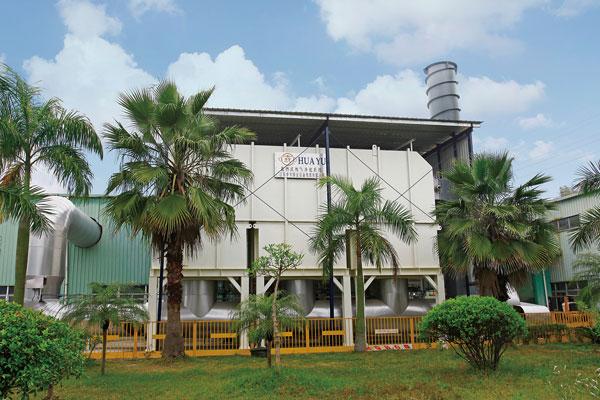

RTO regenerative thermal oxidation air purification system
product detailed information
Regenerative Thermal Oxidation Air Purification System (RTO) is a mature exhaust gas purification equipment. The system has high operational reliability, easy operation and low maintenance cost, and has attracted widespread attention.It is typically used in the printing and coating industry, paint and ink manufacturing, textile and chemical electronics industries. It is specially used to treat volatile organic waste gas (VOC). Volatile organic solvents (VOCs) in the exhaust gas are decomposed and oxidized into carbon dioxide and water in a high-temperature environment.It is considered to be the most economical and environmentally friendly treatment device with universal applicability and durability.
●Applicable to the concentration and composition of various industrial waste gases
●Wide range of air volume for waste gas treatment
●Using a special heat exchange system to improve the recycling of internal heat
●It can achieve the best exhaust gas purification efficiency and meet the strict exhaust gas emission standards of all countries in the world
●Extremely high cost performance
1. Uniform design of airflow distribution
The air flow enters the heat storage bed evenly to ensure the heat exchange efficiency of the heat storage bed.
2. Selection of high-quality refractory materials
The refractory material is a folded block of ceramic fiber cotton with a temperature resistance of up to 1260 degrees, and the surface is sprayed with a hardener to form a hardened layer of silica film to fix the fibers on the inner wall.
3. High-quality low-NOx burner
The system uses natural gas, liquefied petroleum gas, and national standard diesel as the fuel system.The burner is equipped with a sight glass to clearly observe the flame of the main fire, and the ultraviolet flame scanner detects the flame state at any time.
4. Independently developed and produced ceramic regenerator
Improve heat transfer efficiency and reduce RTO system resistance.
5. High quality switching valve group
Double sealing surface switching valve group and safety actuator, the number of switching times without failure is not less than 1 million times, and it is equipped with valve position safety detection.
6. Multi-point temperature detection of ceramic bed
The ceramic bed adopts a multi-point temperature detection system to ensure the safe operation of the RTO through a PLC closed-loop system.
7. Original multi-bed multi-layer temperature correction
In the normal operation of RTO, due to the difference of pipeline resistance and ceramic bed, the heat accumulation effect will cause temperature deviation, and the temperature deviation correction system can automatically adjust and balance the system temperature.
8. Reliable operation safety design
Multi-point continuous detection and emergency emptying system.
9. Unique internal self-cleaning system
It has a safe and reliable burnout device to ensure the self-cleaning of the internal ceramic materials in working condition.
10. Efficient heat recovery system
A heat exchange system is installed downstream, which can make full use of the heat discharged from the RTO and convert it into hot water, hot air, hot oil, etc. for reuse.
