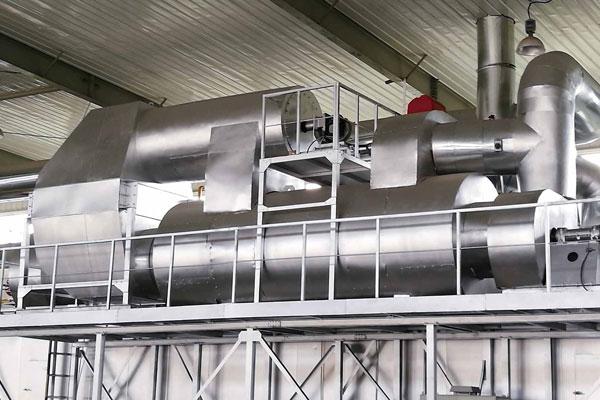

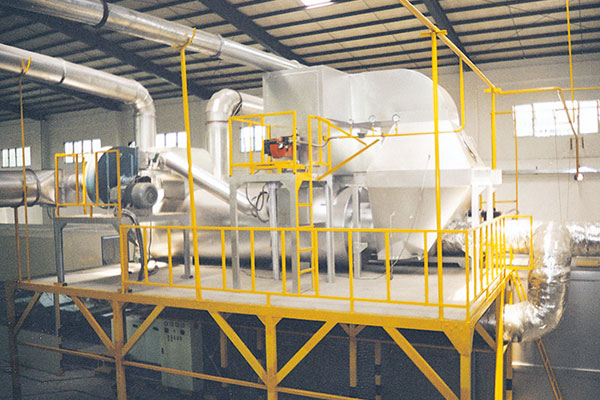

FC-8000 Catalytic Combustion Exhaust Gas Treater and Heat Recovery System

short description

The equipment is mainly used for the organic waste gas such as benzene, toluene, xylene and so on discharged when printing coatings on metal sheets, after flameless catalytic combustion treatment, it becomes non-toxic, harmless clean high-temperature hot air, and is recycled to the heating chamber of the drying room for use as The heat source of the drying room is recycled to achieve the purpose of meeting emission standards and saving energy.


product detailed information

product label

The equipment is mainly used for the organic waste gas such as benzene, toluene, xylene and so on discharged when printing coatings on metal sheets, after flameless catalytic combustion treatment, it becomes non-toxic, harmless clean high-temperature hot air, and is recycled to the heating chamber of the drying room for use as The heat source of the drying room is recycled to achieve the purpose of meeting emission standards and saving energy.

It mainly consists of high-pressure blower, heat exchanger, heater, catalytic bed, catalyst, intake pipe, return air pipe, etc.

Heating energy can be selected from electricity, kerosene, petroleum liquefied gas, natural gas, etc.

The main technical parameters:

Waste gas treatment capacity 60(kg/h)
Catalytic temperature 260~550(℃)
Use airspeed 3000~6000(m/h)

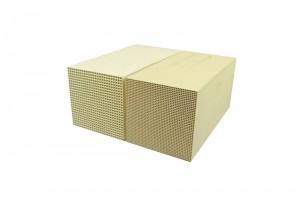

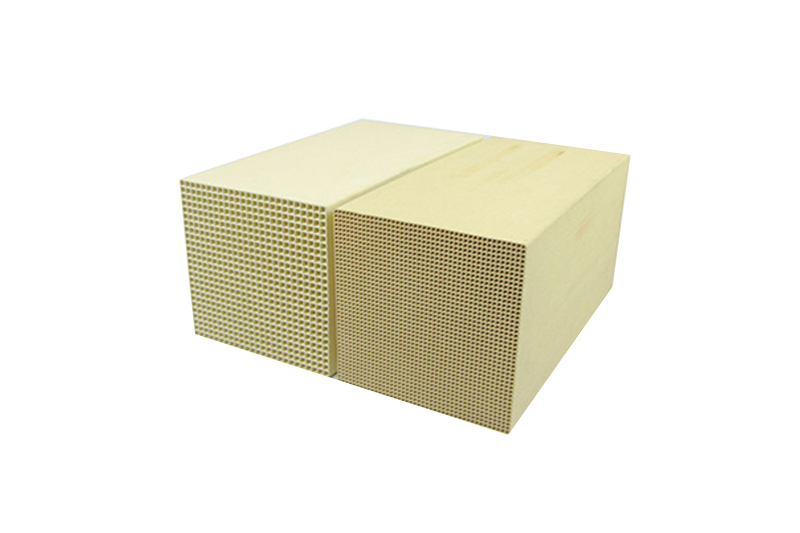

Catalyst loading 100×100×40(mm)1176(p)
The space velocity through the catalyst bed 0.4~0.8(m/s)
machine weight 15000(kg)
Dimensions (LXWXH) 8000×3200×5000(mm)
